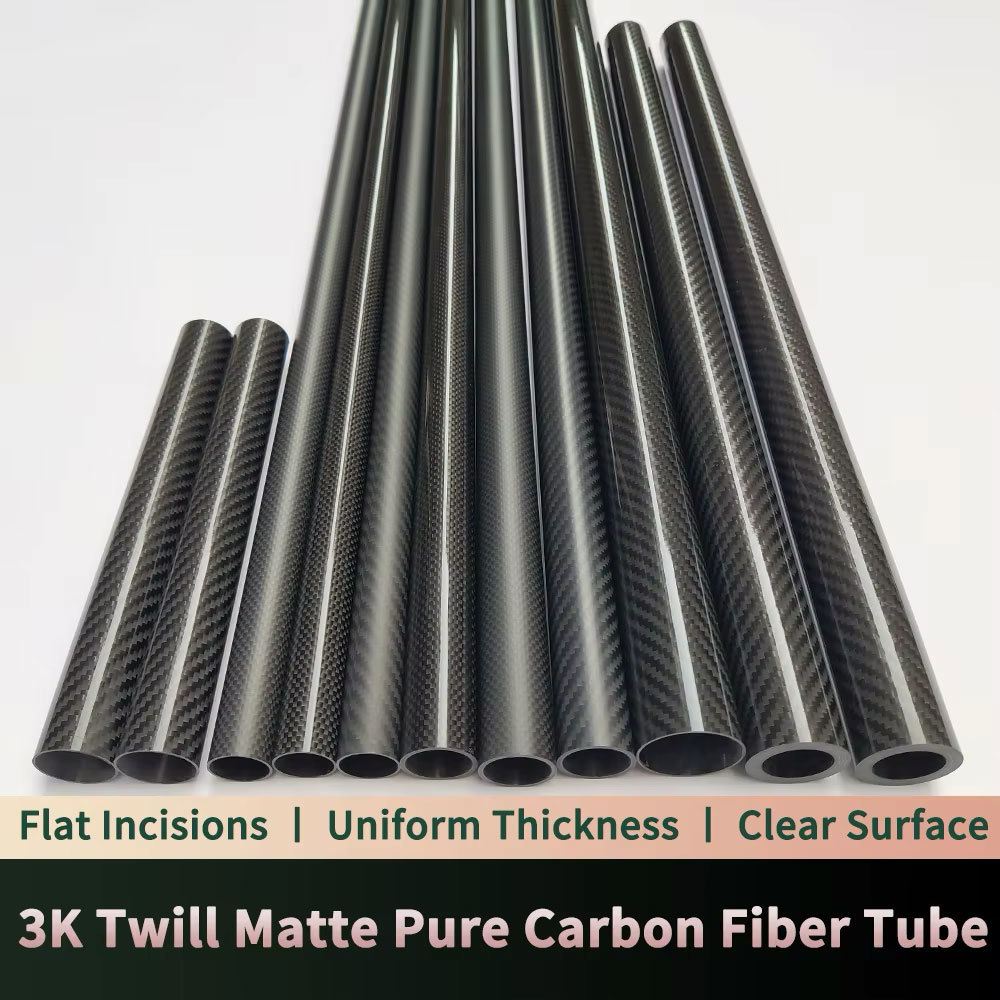

High Strength 3K Twill Carbon Fiber Tube – Epoxy Composite for Structural Applications

Productomschrijving

High Strength 100% 3K Carbon Fiber Tube – Epoxy Composite, Structural Grade

The High Strength Carbon Fiber Tube is a premium composite structural component engineered for applications that demand exceptional strength, stiffness, and lightweight performance. Manufactured from high-quality carbon fiber reinforcement and advanced epoxy resin systems, this tube delivers outstanding mechanical properties while significantly reducing weight compared to metal alternatives.

Carbon fiber tubes are produced by layering woven or unidirectional carbon fiber fabrics around a precision mandrel and curing them under controlled heat and pressure. This process results in a dense, void-free composite structure with excellent fiber alignment, ensuring superior load-bearing capacity and long-term durability.

Key Performance Features

1. High Strength-to-Weight Ratio: Exceptional tensile and compressive strength with minimal mass
2. Outstanding Stiffness: High modulus structure minimizes flex, vibration, and deformation
3. Fatigue Resistance: Maintains performance under repeated and cyclic loads
4. Corrosion & Chemical Resistance: Immune to rust and resistant to moisture, fuels, oils, and chemicals
5. Thermal Stability: Low thermal expansion for dimensional accuracy across temperature changes

Surface Finish & Options

• Finish Types: Glossy, matte, or semi-gloss
• Fiber Types: 3K, 6K, 12K, or unidirectional carbon fiber
• Layup Options: Quasi-isotropic or custom fiber orientations for optimized strength
• Resin Systems: Standard epoxy, high-temperature, or flame-retardant options

Available Specifications

• Outer Diameter: Customizable
• Inner Diameter / Wall Thickness: Precision-controlled to meet structural requirements
• Length: Standard or custom-cut lengths available

Machinability & Fabrication

High strength carbon fiber tubes can be cut, drilled, and CNC-machined using appropriate carbide or diamond tools. Clean fiber structure ensures smooth edges and accurate tolerances, making them ideal for precision assemblies and structural integration.

​
